If you watch a tanker trail a basket or push out a rigid pipe, you see only the last meters of a chain that starts inside the tanks. Aerial refueling, also called air refueling, in-flight refueling, air-to-air refueling and tanking, is the transfer of aviation fuel from one aircraft, the tanker, to another, the receiver, while both stay in flight.

You will learn how the two main interfaces work, what a receptacle, a hose drum, a drogue and a pod each do, and why a boom jet and a probe jet cannot always share the same tanker. The payoff named on the page is longer time in the air, more range or loiter time, and takeoffs with greater payload in weapons, cargo or personnel because less fuel is carried at takeoff and added once airborne.

You meet only two interfaces in flight

Probe-and-drogue is simpler to adapt to existing aircraft, while the flying boom offers faster fuel transfer but requires a dedicated boom operator station. That tradeoff shapes every tanker you see. A load limited only by crew fatigue and engine oil consumption becomes possible through repeated contacts, and long distance flights greater than 3,000 nautical miles, 5,600 km, 3,500 mi, have been studied for fuel savings in the range of 35 to 40 percent including tanker fuel.

The cost of equipment on tanker and receiver plus very close line astern formation handling explains why there are no regular civilian contacts. The activity stays military. Usually the tanker is specially designed for the task, although refueling pods may be fitted to existing aircraft for probe-and-drogue work.

How does a rigid boom stay locked to a moving jet?

The flying boom is a rigid telescoping tube with small movable flight surfaces, often in a V shape, that fly it through the air. It hangs from a gimbal at the rear of the tanker and carries a rigid pipe to a nozzle with a flexible ball joint. A poppet valve in the nozzle keeps fuel in until the nozzle mates with the receptacle, then toggles in the receptacle hold it locked while fuel flows. You can picture the job in two moves, which rigid boom handling walks through from the operator seat.

You as receiver pilot fly into position behind the tanker, helped by director lights or radio calls, then the operator extends and telescopes the pipe to make contact. While joined you must stay inside the air refueling envelope. Outside that space the boom can be damaged or aircraft can collide, as in the 1966 Palomares B-52 crash. If you drift toward the edge the operator calls a correction and disconnects when needed, and after transfer you back away and leave. Stowed flush under the fuselage, the boom adds little drag. In the KC-97 and KC-135 the operator lies prone, in the KC-10 the operator sits, each looking through a tail window, while the KC-46 seats two operators at the front on camera video shown on 3D screens.

What keeps a loose hose steady enough to catch?

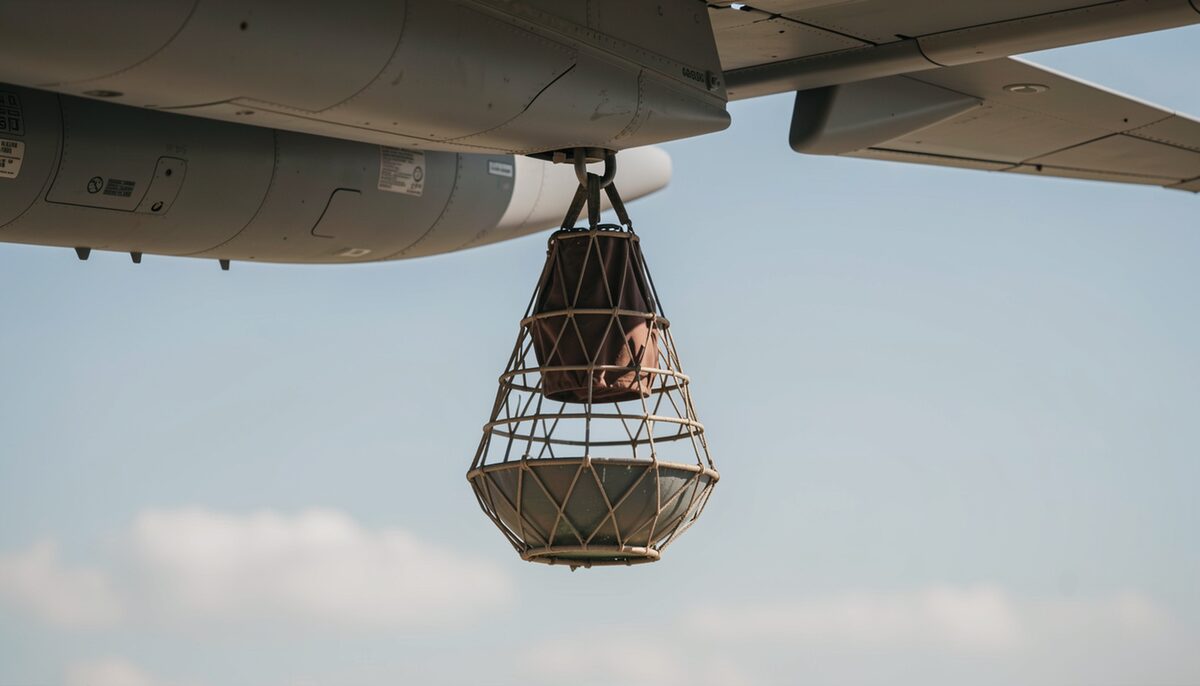

A drogue looks like a shuttlecock basket on the end of a flexible hose. The narrow end joins the hose through a valve, the wide mouth steadies the hose in flight and funnels your probe toward contact. The hose runs to a hose drum unit, and when not in use it reels fully inside. Your aircraft carries a rigid probe, fixed or pivoted and often retractable to cut drag, mounted on the nose or fuselage. Its tip valve stays shut until it mates with the forward receptacle in the drogue, then it opens. Details of the basket shape and valve action are easier to follow with hose basket and coupling beside you.

The valves follow a NATO standard first developed in the United Kingdom by Flight Refuelling Limited and deployed in the late 1940s and 1950s, which lets drogue tankers of one nation feed probe aircraft of another. Shear rivets attach the fuel valve to the probe tip so a strong side or vertical load breaks the valve away instead of damaging the aircraft. Poor technique or turbulence can leave a broken valve stuck in the basket, and that drogue stays out of use until ground maintenance clears it.

How do wing pods let one tanker feed two fighters at once?

Centerline systems feed one receiver at a time. All boom tankers such as the KC-135 Stratotanker, KC-10 Extender and KC-46 Pegasus carry a single boom, so they work one aircraft at a time through that pipe. Multipoint hose-and-drogue changes the rate by adding points. Underwing pods let a tanker pass fuel to two or more aircraft at once, which can cut time spent refueling by as much as 75 percent for a four-aircraft strike package. The broad overview of aerial refueling places these choices beside early hose trials and later boom development.

Many KC-135s carry dual underwing Multi-point Refueling System attachments, while some KC-10s and A330 MRTT aircraft carry similar underwing pods, called Wing Air Refueling Pods on the KC-10. The USAF KC-10 also pairs a flying boom with a separate Cobham hose-and-drogue set, both on the tail centerline, so only one can be used at once yet both receiver types can be served in one mission without landing to change hardware.

Why does a steel basket punish small errors?

USAF KC-135 and French KC-135FR boom tankers can be field converted with an adapter that puts a hose and drogue on the end of the rigid boom instead of the usual nozzle. The operator holds the boom still while you fly the probe into the basket. The adapter basket is steel, called the iron maiden, and it does not forgive off center hits the way a soft canvas basket does.

A soft drogue can guide a slightly off center probe into the receptacle. The metal basket pivots out of place and can slap the fuselage. The hose also has no drum to absorb motion, it bends with how far you push toward the boom. Pushed too far it can loop around the probe or nose, touch the windscreen or hit the rigid boom. Not pushed far enough it drops out and fuel stops. The position tolerance is much smaller, so staying connected is considerably harder than on a traditional hose.

Can a boom tanker serve a probe jet?

Not directly. Probe-and-drogue is not compatible with flying boom equipment, and that gap troubles planners who mix forces. The page cites the Royal Canadian Air Force wish to buy the F-35A, which refuels only through a flying boom, while holding only probe-and-drogue tankers, with conversion cost feeding a procurement debate. Tankers that carry both kinds of outlets answer the same problem in the air, including the MPRS KC-135, KC-10, KC-46 and Airbus A330 MRTT.

Everyday use already splits along those lines. The US Navy, Marine Corps and some US Army aircraft use hose-and-drogue, as do most aircraft flown by western European militaries. The Soviet Union used its own hose-and-drogue UPAZ set, later Russian aircraft can carry probe gear, and the Chinese air arm has Xian H-6 bombers modified for aerial refueling, with plans for Ilyushin Il-78 tankers. A buddy store extends the same logic down to fighters, an external pod on a hardpoint with its own hose and drogue that lets one strike aircraft tank another, or lets a carrier jet launch with heavier weapons and less fuel and top up after takeoff. The Royal Navy used the method with Supermarine Scimitar, de Havilland Sea Vixen and Blackburn Buccaneer aircraft, in the Buccaneer case with a bomb bay tank and hose unit.

Why did wingtip hoses and midair grapples disappear?

A small number of Soviet Tu-4 and Tu-16 aircraft, the tanker version listed as Tu-16Z, used a wing to wing method. The tanker trailed a flexible hose from its wingtip and the receiver flying alongside had to catch it with a special lock under its own wingtip before fuel could be pumped. An older grapple method had the tanker unreel a hose for the receiver to snag in midair, reel in and connect, with fuel fed by pumps or by gravity. That was the method used on the Question Mark endurance flight in 1929.

Inside the tanker the same care continues. All fuel on board may be offloaded or burned by the tanker as needed, with gravity draining and pumps moving fuel from tank to tank. Tanker technique shows in small cues you can read from outside. The tanker flies straight and level with the hose trailing behind and below, you close from behind and below at about two knots and push the hose several feet into the drum to couple. Too little closure gives no flow or a leak, too much can set up a transverse wave that cuts the probe tip. Fuel flow brings a green light near the drum, a cutoff from pushing too far or not far enough brings an amber light, and the tanker pilot orders disconnect with a red light. Special fuels add separation, the SR-71 used JP-7 with a very high flash point for Mach 3 skin heat, and mixing JP-7 with JP-4 or Jet A made it unfit for that aircraft, so the KC-135Q carried changes to fuel plumbing and procedures to stop mixing in flight and SR-71 aircraft refueled only from KC-135Q tankers.

The Wikipedia page on aerial refueling defines tanking, IFR, AAR and the tanker receiver pair, then keeps separate parts for the flying boom, probe-and-drogue with buddy stores, adapter units, dual installations, wing to wing links, compatibility, strategic and tactical use, and later operations from Korea to the Gulf. You can open the systems part to match each boom, basket or pod photo with the fitting described here and name which side holds still on your next sighting.
